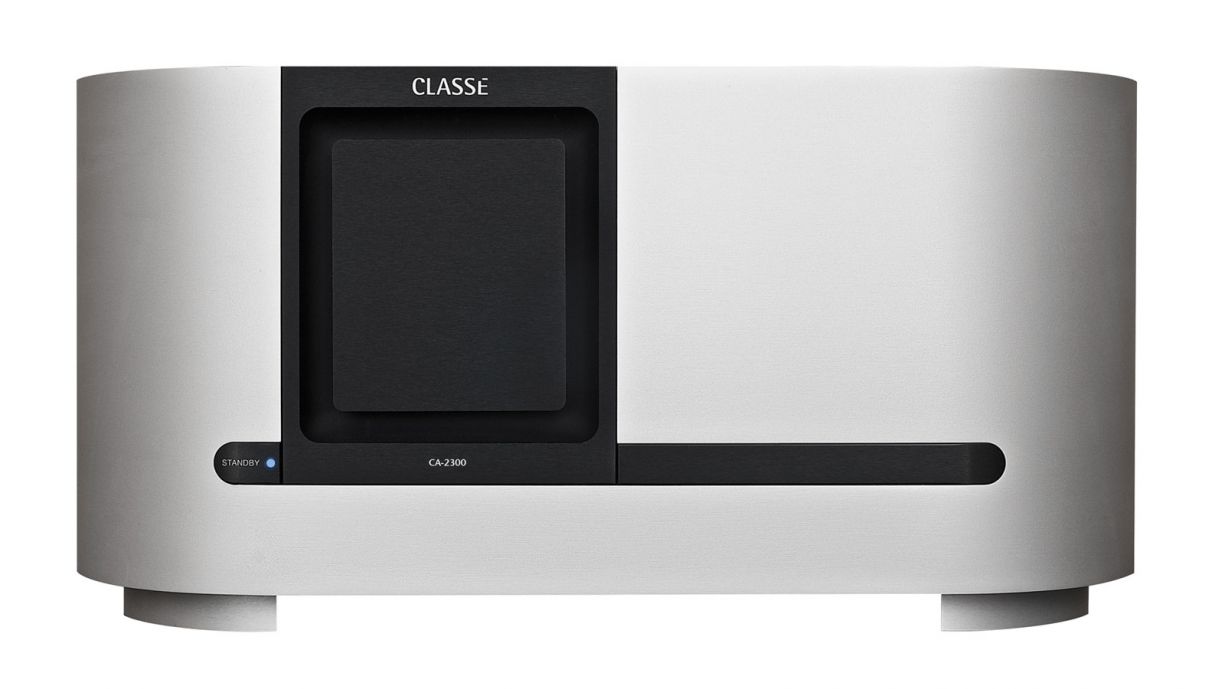

CA-2300 Two-Channel Amplifier

Key Data

Serial number range:
Manufacturing Start: 2001
Manufacturing End: 2011
Weight:
Packing Instructions:
Service Notices:

Specifications

Details

All tests un-weighted and 500kHz measurement bandwidth (except SNR).

Frequency response



1Hz – 80kHz, -3dB

Output power



300W rms into 8Ω (24.8 dBW)
600W rms into 4Ω (24.8 dBW)
Both channels driven

Harmonic Distortion



<0.002% at 1 kHz balanced
<0.004% at 1 kHz single ended

Peak Output Voltage



150V peak to peak, 53V rms no load
136V peak to peak, 48V rms into 8Ω

Input Impedance



50kΩ balanced / single ended

Voltage gain



29dB balanced / single ended

Input level at clipping



1.88V rms balanced / single ended

Intermodulation
Distortion



>90dB below fundamental into
8Ω balanced / single ended

>90dB below fundamental into
4Ω balanced / single ended

Signal to Noise Ratio



-116dB at peak output into 8Ω
Measurement Bandwidth: 22 kHz

Output impedance



0.015Ω @ 1 kHz

Standby power
consumption



3W @ 120V; 5W @ 230V

Rated power
consumption



763W @ 1/8th power into 8Ω

Width



19” (483mm) (including faceplate)

Width



17” (432mm) (excluding faceplate)

Depth



18.625” (473mm) (excluding connectors)

Height



6.97” (177mm)

Gross weight



109lbs (49.5kg)

Net weight



89lbs (40.5kg)

Mains voltage



Specified on rear panel



Owner's Manual

Brochure

Info Sheet

Drawings 2D/3D

Block Diagram

  • CA-2300 - Block Diagram.pdf

Firmware

DOWNLOAD
  • Current Version: V1.09

    Last Updated:
      • 27 April 2012 (Front Panel Software)
      • 2 April 2010 (Heatsink Software)
How to Check and Update Firmware

How to check the current Firmware of your Delta II Series Amplifier

  • The first option is through CAN-Bus. In that case, the amplifier must be connected to another Classé unit that has a TFT Touch Screen (like the SSP-800 or Sigma SSP). Press MENU > STATUS > MORE to view a list of CAN-Bus devices in the system. Select the amplifier and press SELECT > STATUS to view the current version. If the amplifier does not show up on the CAN-Bus list it should be updated.

  • The current Firmware can also be checked through a Classé Diagnostic Utility called Delta_CT_User_Interface_Installer.  As it name states, it allows you to access a Delta II amplifier (like this model) through a PC-based interface.  Please note that the Utility is only available for PC, due to limitations imposed by the Communications module.

Is a Firmware Update important?

Yes, a Delta II Amplifier Firmware Update solve issues that are found "in the field". Improvements can range from increasing the span of time between filter cleaning warnings, to important adjustments in soft start timings and shut down timings.

How to update Delta II Series Amplifier Firmware

This Firmware update must be transferred from a local Windows PC to the unit using the “Classé Amploader 3.5” utility. The Classé Amploader 3.5 utility is a small standalone application that can run from your computer's Desktop or your Program Files folder. It is included in the ZIP archive.

In most cases there are TWO software components to update: The so-called "Front Panel" (which holds the operating software to the unit) as well as the "Heat Sink" (which deals with equal temperature, and other Heat Sink considerations),

Both must be updated. Make sure to update the Front Panel Software FIRST, prior to updating the Heatsink Software.

Home Automation

All Delta II amplifiers can be controlled via CAN-Bus, DC Trigger (in-out), IR in-out and via RS232.  The latter is available via a DB-9 connector on the rear panel.

IR Remote Control Codes

All Delta II Amplifiers can be controlled using RS232, a protocol used by Home Automation Systems like Crestron, Control 4, etc. Delta II Amplifiers are equipped with a DB-9 connector.

Front LED explained

Event Log File Diagnostics

Fuses

Bench Tests (before sending unit for repair)

Service Manual

Block Diagram

Assembly Documents

  • Wrap Assembly document
  • Heatsink Assembly Document
  • Wire Assembly Documents

PCB Boards

ID Description Schematics BOM Assembly Doc
R7303 LVD INTERCONNECT
R7304 COMMUNICATION BOARD
R7307 HS POSITIVE OUTPUT
R7308 HS NEGATIVE OUTPUT
R7309 CT AMP LINEAR CAP
R7310 LINEAR MONITOR STDBY
R7312 LINEAR POWER INTRCNT
R7313 ZOBEL NETWORK
R7314 LED SWITCH BOARD



Transistor Kit

Transistor Kit information

Service Notices
